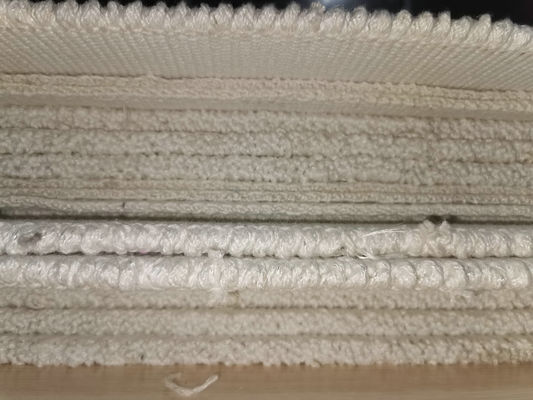

Wear Resistant Non Asbestos Windlass Winch Brake Lining

  • Wear Resistant Non Asbestos Windlass Winch Brake Lining
  • Wear Resistant Non Asbestos Windlass Winch Brake Lining
  • Wear Resistant Non Asbestos Windlass Winch Brake Lining
  • Wear Resistant Non Asbestos Windlass Winch Brake Lining
Place of Origin CHINA
Brand Name DALU
Certification GB/T 19001-2016/ISO 9001:2015
Model Number BXS-M
Minimum Order Quantity 0.5 Tons
Price Negotiable
Packaging Details exporting wooden case
Delivery Time 6 weeks after down payment
Payment Terms T/T
Supply Ability 20 Tons

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Non Asbestos Windlass Winch Brake Lining Product Color Brown
Application Winch And Windlass Brake, Hoist Brake, Crane Brake, Winder Brake, Drilling Machine Brake Size 10, 15, 20 Meters/roll
Material Brass Wire, Resin, Viscose, Type BXS-M
Woven Woven Brake Lining Asbestos Free Woven Brake Lining Rolls Resin Melamine Resin
Main Raw Material Non-asbestos Yarns Color Yellow
High Light

Windlass Winch Brake Lining

,

Non Asbestos Winch Brake Lining

,

Wear Resistant Winch Brake Lining
Leave a Message
Product Description

Non Asbestos Woven Brake Lining yellow anchor brake lining Brake Lining in Roll woven brake lining



Non asbestos Woven Brake Lining ship anchor brake lining, winch brake lining,windlass brake lining lining,asbestos free



Description:



Non-asbestos Woven Brake Lining selects new-type abrasion resistant and high temperature resistant non-asbestos yarns which contain brass wires, viscose fiber, Glass fiber, Aramid fiber etc.



Our product owns high performance of wear resistance, low wear rate, high tensile strength, good softness, high temperature resistance, corrosion resistance, oil resistance, long service life and impact resistance etc. They are definitely 100% non-toxic, pollution free and environmental products.



Brake Lining is extensively used in marine and industrial applications. It is suitable for

winch and windlass, hoist, crane, winder, drilling and workover rigs, agricultural

vehicle, elevator, and construction machinery.



It's made of friction material, brass wire, yarns and resin. It's applicable to industrial machinery that requires a high degree of friction, can be used in tractors, oil wells, dredges, sugar mills, winch, cranes, construction machinery, power generators, voltage controllers, cutters of paper, stamping machines, glass melting machinery, motorcycles and among many other industrial fields.







Specifications:



Temperature Coefficient of friction(μ) Wear rate(v)(cm³/N.m)
100℃ 0.35~0.65 ≤0.7 x 10-7
150℃ 0.35~0.65 ≤1.1 x 10-7
200℃ 0.30~0.60 ≤1.5 x 10-7
250℃ 0.25~0.60 ≤2.5 x 10-7







Ningbo Xinyan is a professional manufacturer of Non-asbestos friction material in China. More than 80% of our products have been exported to European and American markets. As the leader manufacturer of woven brake lining in the world, we are stable and sustaining partner of the world famous winch maker.Relying on superior quality, strong technical power, excellent service, prompt delivery, We win good reputation and recognition from the domestic and abroad market, and has built long-term and friendly business relationship with the large state-owned enterprise and world famous companies. With comprehensive test equipment,Ningbo Xinyan is capable to offer the compared testing service and customized friction products.






Wear Resistant Non Asbestos Windlass Winch Brake Lining 0Wear Resistant Non Asbestos Windlass Winch Brake Lining 1Wear Resistant Non Asbestos Windlass Winch Brake Lining 2



Wear Resistant Non Asbestos Windlass Winch Brake Lining 3





Competitive Advantage:



Our factory could produce the raw materials for brake lining. We have yarn machines, we produce yarns and then weeve yarns into brake lining rolls by ourself, so that we could control the whole quanlity and cost very well.



We adopt Japanese Technology. All yarns are woven by advanced Japanese loom machinery & equipment then impregnate into specially formulated polymer resin, through high temperature, low temperature etc. processing workmanship.
